DXD-300高速全伺服枕式包裝機

USE用途

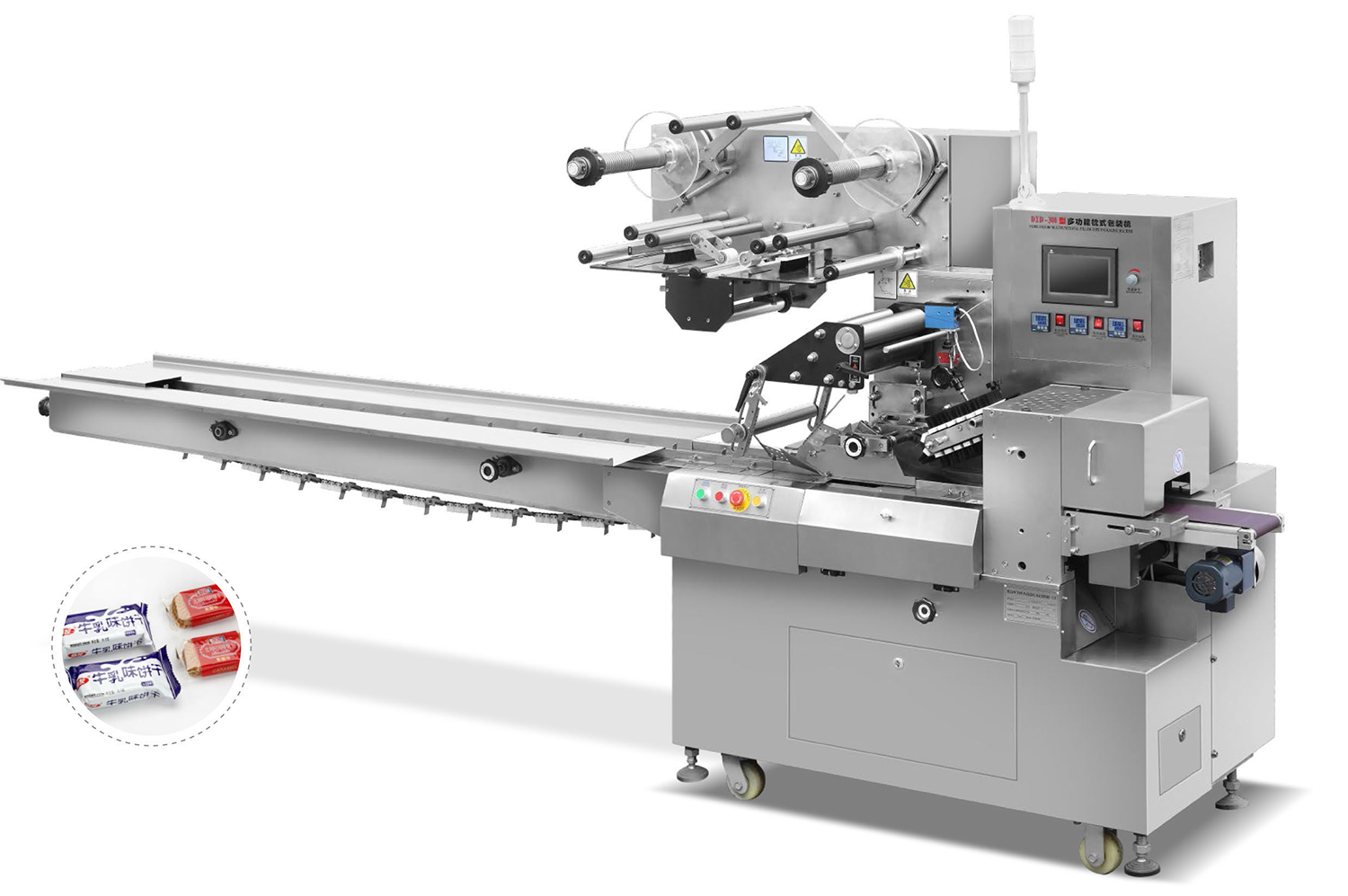

Packing machine model: dxd-300 high speed full servo pillow packing machine.
包裝機型號:DXD-300高速全伺服枕式包裝機
It is used for packing products as biscuits, chocolates, cakes, cards,products for daily used etc.
適用于餅干、巧克力、蛋糕、卡片、日用品等的包裝。
Functions of packaging machine包裝機的功能
1. Equipped with high-speed automatic film connection function, high-efficiency automatic film change without stopping the machine.
1、枕式包裝機配備高速自動接膜功能,效率高率不停機自動換膜。
2. Can be freely configured on the touch screen, multi zone temperature control, excellent packaging and high quality sealing.
2、可在觸摸屏上自由配置,多區域溫度控制,出色的包裝和質量高的密封。
3. The super large material tray is most suitable to be used together with the material supply. It is equipped with a vibrating bucket unloading device to ensure the effect.
3、超大物料托盤z適合與物料供應一起使用配有振動斗下料裝置,確保效果。
MAIN TECHNICAL PARAMETERS主要技術參數
DXD-300
Max.Production Capacity Packing shape | z大生產能力 包裝物形 | 40-200 (單刀Single Cutter) | 80-400(雙刀Double Cutters) | 200-400(三刀Three Cutters) | |||||
方形、長方形、圓形、橢圓形、片狀等。Square,rectangle,circular,ellipse and flake etc. | |||||||||
Packing Range / Width Height | 包裝范圍/ 袋長 寬度 高度 | 170-1000mm 35- 100mm <60mm | 80-500mm 35-100mm <40mm | 50-135mm 60-100mm <30mm | |||||
Max.Dia.of Film | 包裝膜z大直徑 包裝膜z大寬度 | 350mm 300mm | 350mm 300mm | 350mm 300mm | |||||
Gross Power Power Supply | 總功率 電源 | 4.5kW 220V 50Hz | 4.5kW 220V 50Hz | 4.5kW 220V 50Hz | |||||
Gross Weight Overall Dimension | 總重量 外形尺寸 | 900kg 4300×850×1550mm | 900kg 4300×850×1550mm | 900kg 4300×850×1550mm | |||||
Packing Material | 包裝材料 | OPP、CPP、PET鍍鋁膜、鋁塑膜、紙塑、紙膠等單層多層等可熱封材料 建議使用外層PET厚度0.013mm,內層CPP厚度0.023~0.027mm ,復合低溫膜 OPP、CPP、PET Metallized film,Al-plastic film,Paper-rubber complex Suggest to used wrapping film with material of PET13/CPP23-27 |
Note: We can design and manufacture according to customer's special needs. 注:用戶如有特殊規格,本公司可對包裝機另行設計制造.
